What amps to charge a 6s lipo.

Alan0823

Well-known member
Messages
101
Reaction score
26
Tekno RC's
  1. MT410
Driving Style
Basher
Hi, forum I need help? At what amps can I charge my Graphene 6s lipo.
I have the HTRC charger 150watts. Appreciate any suggestions. Thanks.


Matthew_Armeni

Tekno RC Staff
Tekno RC Staff
Messages
113
Reaction score
174
Depends on the capacity of the pack. If it's a 6s 3000mah pack, charging at 3 amps is 1C. Charging at 6 amps is 2C. A 5000mah pack would be 5 amps 1C and 10 amps 2C. If your battery says it can charge at 2C then go ahead and do that but your charger might not be able to do it. It should max itself out though so it will just take a little longer.


Alan0823

Well-known member
Messages
101
Reaction score
26
Tekno RC's
  1. MT410
Driving Style
Basher
Oh sorry it's a 6s 5000mah 45c graphene lipo.


Lynny

Well-known member
Messages
70
Reaction score
82
Location
SE PA
Tekno RC's
  1. ET48
Driving Style
Basher
Hi, forum I need help? At what amps can I charge my Graphene 6s lipo.
I have the HTRC charger 150watts. Appreciate any suggestions. Thanks.
That charger is 75 watts per channel and can be adjusted to a 120-30 split you will get about 4 amps if that to charge a 6S battery how do I know I got one and there amp ratings are way off if you’re going to be charging 6S exclusively time to upgrade chargers. Takes about an hour an a half to charge 5000 mah 6S at that rate.


Alan0823

Well-known member
Messages
101
Reaction score
26
Tekno RC's
  1. MT410
Driving Style
Basher
Ok so what's the best charger to get for charging a 6s lipo faster and at a better charge rating?


SHWA

Well-known member
Messages
115
Reaction score
62
Location
Katy, TX
Tekno RC's
  1. ET48
Driving Style
Basher
@Alan0823 I had the same question last year. My thread may be helpful. Note that I ended up building my own power supply out of old server power supplies. It was not too difficult. Soldering was the hardest part in my opinion and if you can build a RC Kit then you can take on this project.

https://www.teknoforums.com/threads/best-charger-options-for-6s-5000mah-batteries.1595/

I love the results and I can charge at 20+ amps no problem. The key is what your batteries can handle. Mine can handle up to 25 amps. They are 5000mah and 5c max.


freelosophy

Well-known member
Messages
140
Reaction score
47
Unless I have to or want to charge quickly I usually charge a .75C or .5C of the rated battery. I read somewhere that would make it last longer. Does anyone have any experience with making batteries last longer by charging at less than specified on the battery?


Alan0823

Well-known member
Messages
101
Reaction score
26
Tekno RC's
  1. MT410
Driving Style
Basher

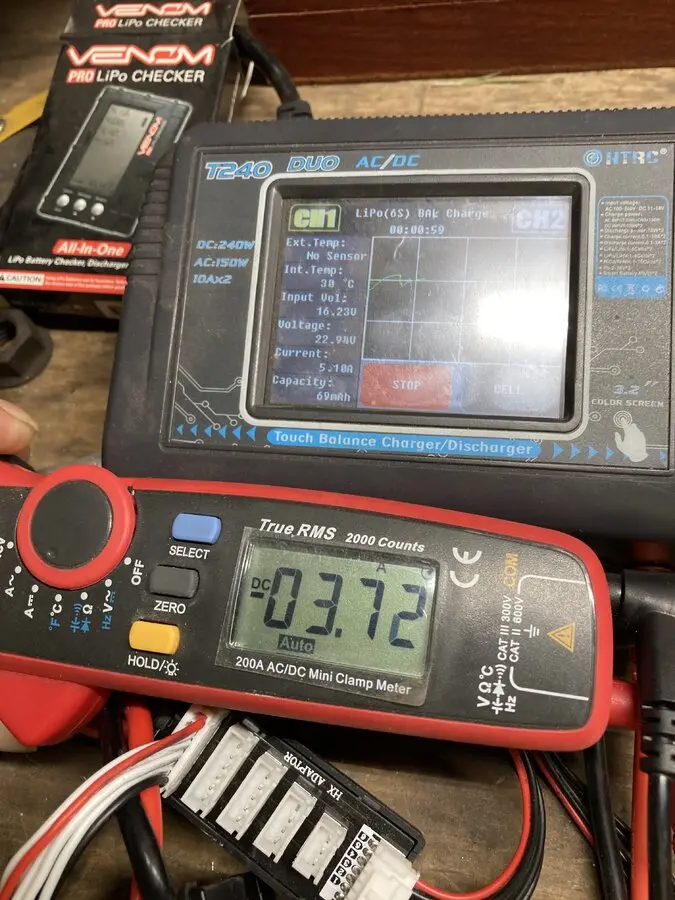

I got a better battery charger now same as shown in the upper picture. 👍


Attachments

  • 16230003343333547424412926841607.jpg
    63.2 KB · Views: 10

SHWA

Well-known member
Messages
115
Reaction score
62
Location
Katy, TX
Tekno RC's
  1. ET48
Driving Style
Basher
If anyone else is looking for a charger amain has a sale on the Junsi iCharger X6.
