FINAL ASSEMBLY - ESC/RECEIVER PLACEMENT

[wwreynolds4]

I'm finishing up my ET410.2, and was hoping for some assistance on ESC/Receiver placement. I have an EZRUN MAX 10. If anyone has pictures of their placement that have been successful, I would greatly appreciate it.



[RustyUs]

EZRun MAX10 G2?



[wwreynolds4]

EZRun MAX10 G2?

yes, that's the one.



[RustyUs]

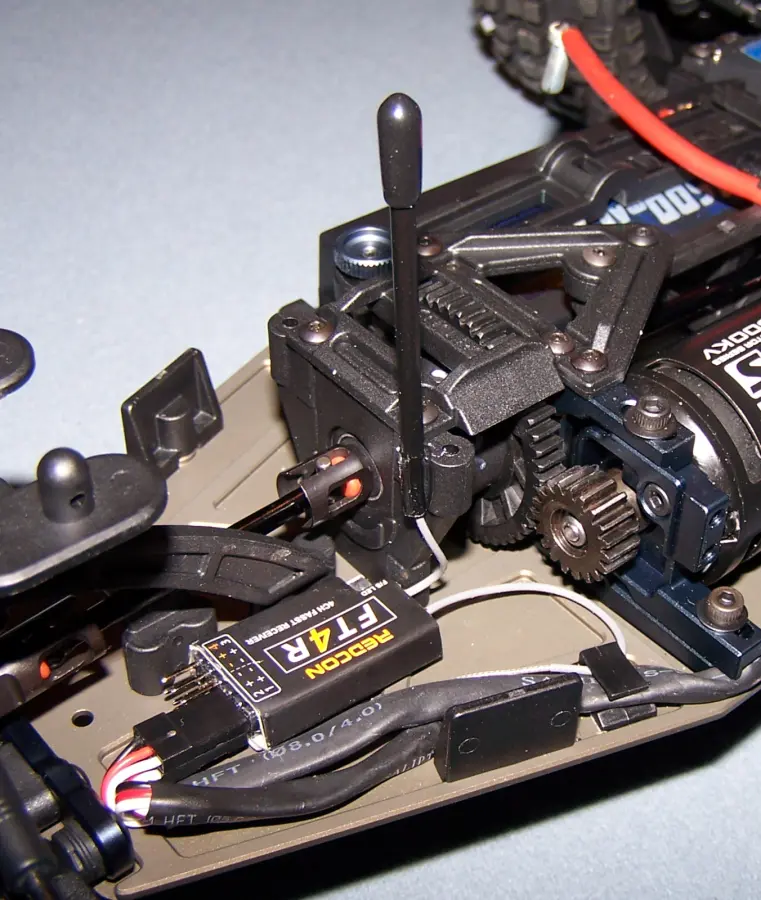

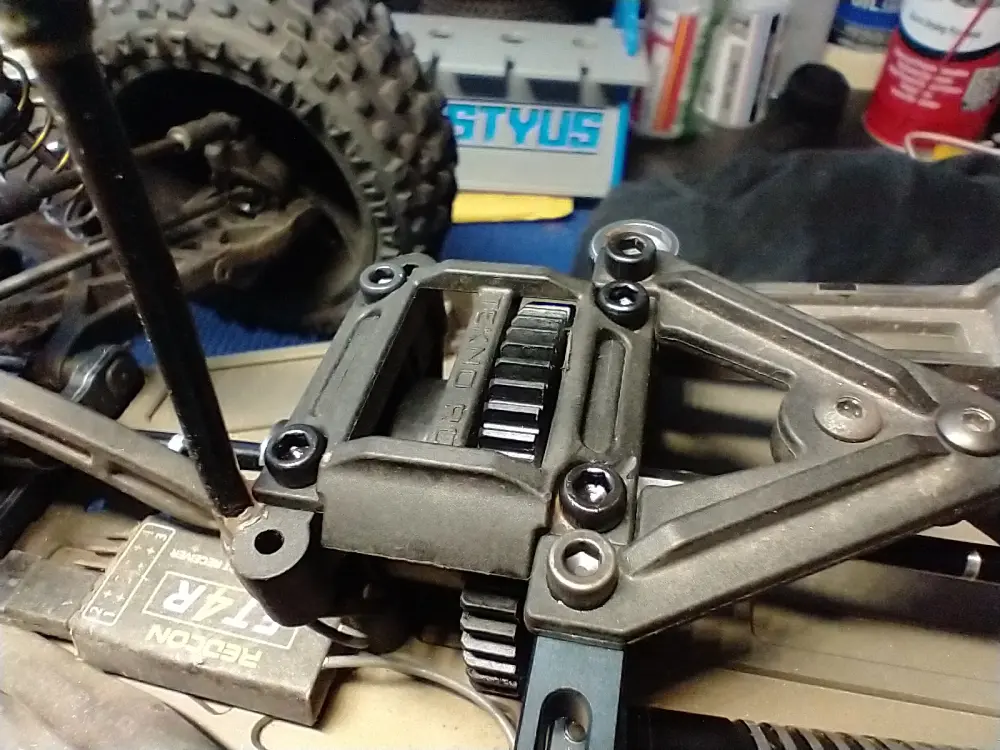

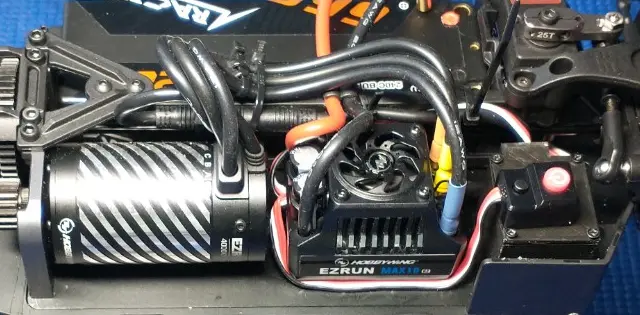

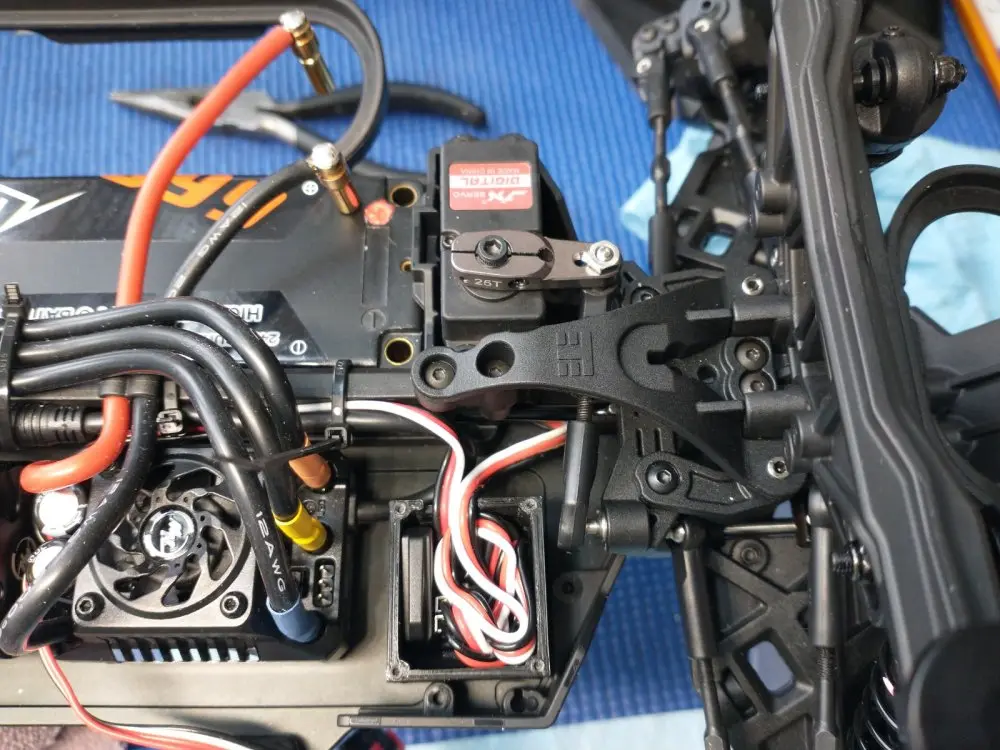

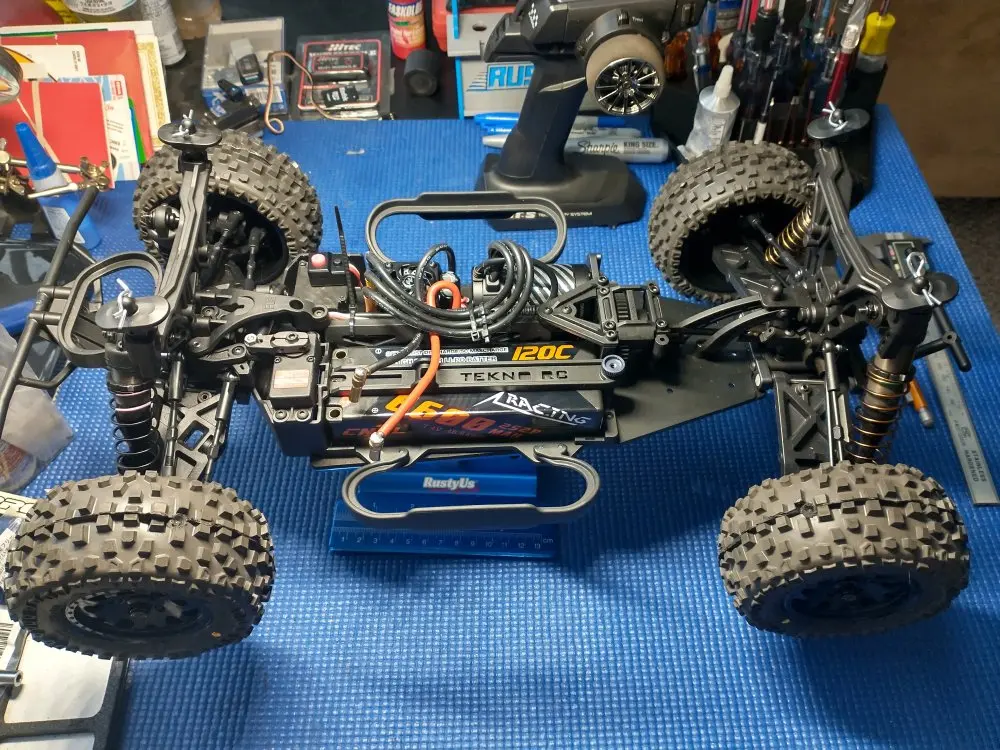

The 140A and 80A versions of the G2 are the same size. I don't have it mounted on an ET410.2, but the 140A G2 is on my SCT410SL chassis with the 3665 G3 motor. You don't want to see my ET410's setup . I tossed and turned trying to figure out a good orientation. Maybe the following will give you an idea what you're after:

I zip tied the sensor cable to the center brace.

I'll probably shorten the motor wires at some point. I just wanted to see how things held up during the first month or two. So far, so good.

I have not seen anyone with a Max10 G2 on a ET410 yet. I'd love to see what you come up with, 'cause I got plans for putting a Max10 80A G2/3652 G3 combo onboard a ET410.2 later on this year.



[RustyUs]

This might interest you... https://www.raceformrc.com/products/teknorc-eb410-et410-v2-electronic-tray

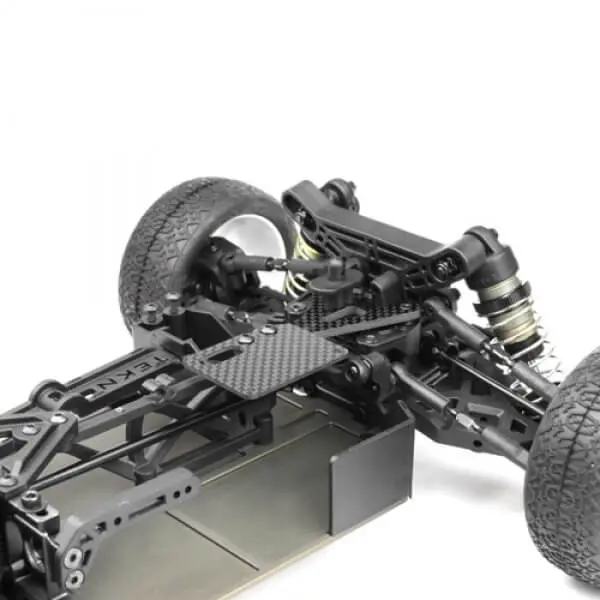

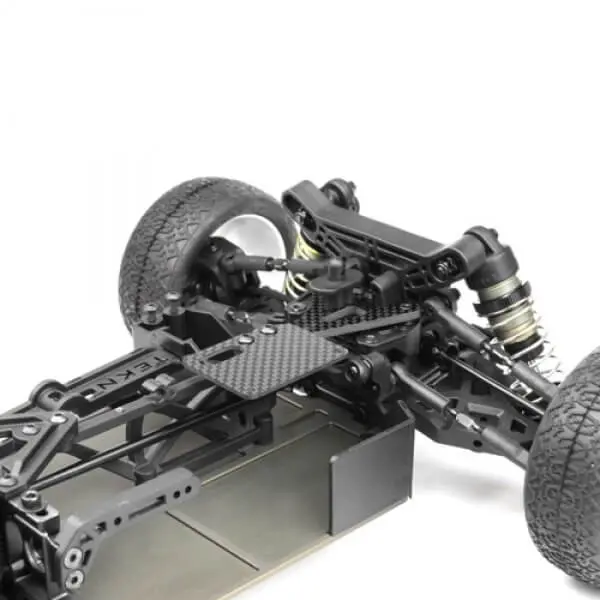

Things are gonna be a tight fit. Tekno also has an CF tray... https://www.teknorc.com/shop/tkr7299c-rx-tray-carbon-fiber-requires-tkr6598c-eb-et410/



[wwreynolds4]

This might interest you... https://www.raceformrc.com/products/teknorc-eb410-et410-v2-electronic-tray
Things are gonna be a tight fit. Tekno also has an CF tray... https://www.teknorc.com/shop/tkr7299c-rx-tray-carbon-fiber-requires-tkr6598c-eb-et410/
View attachment 9578

That would definitely help! Thank you RustyUs!



[RustyUs]

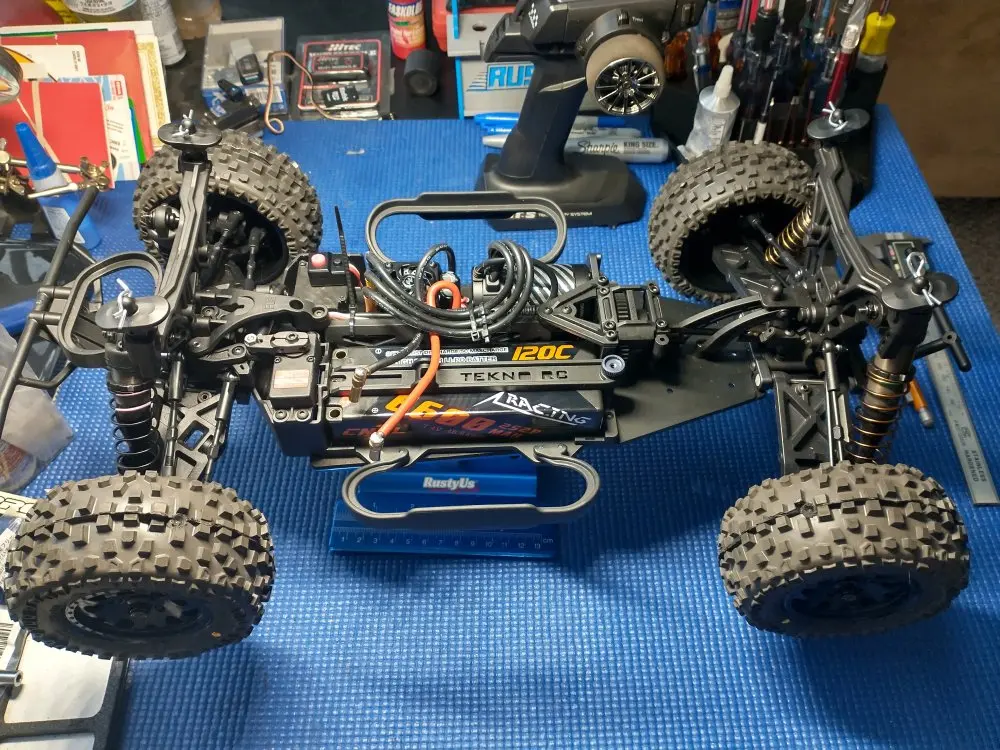

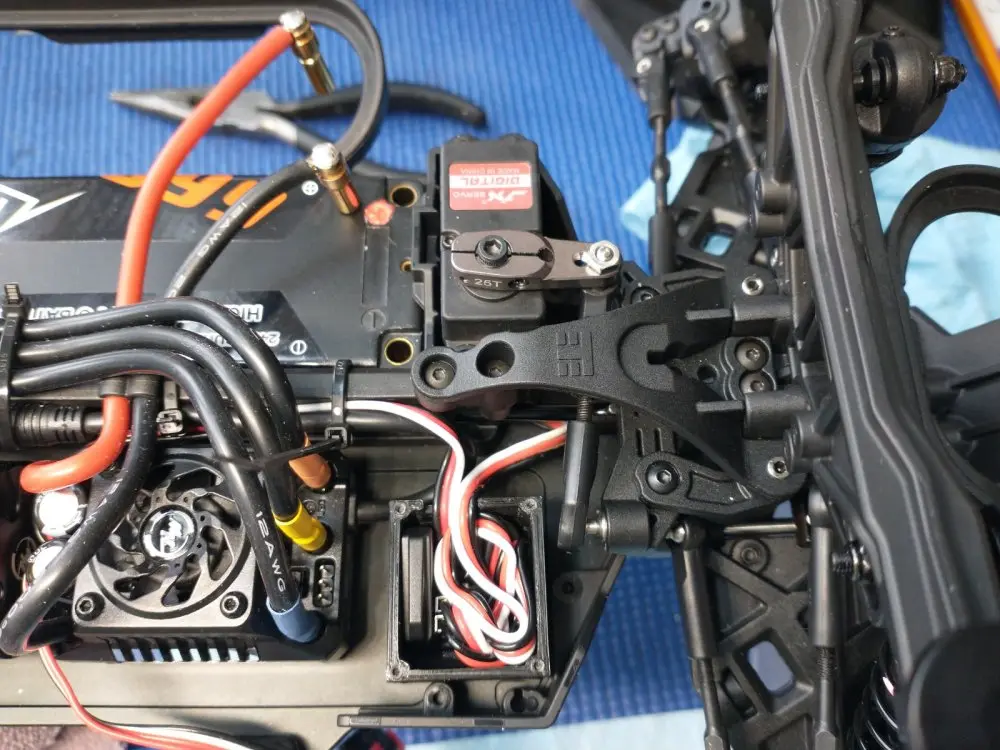

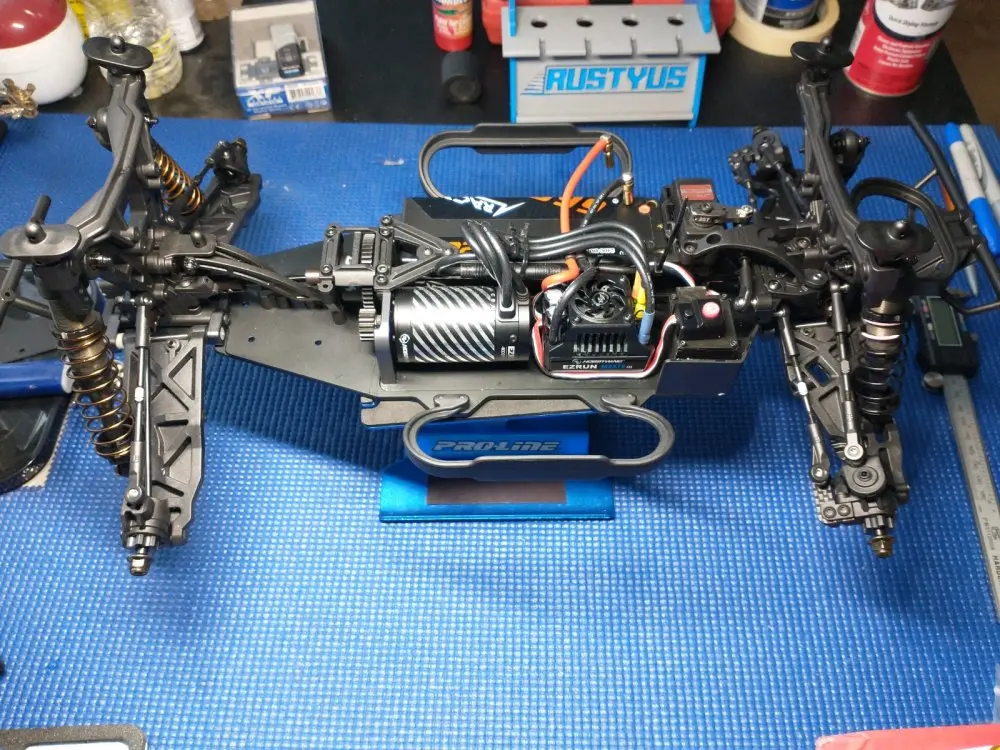

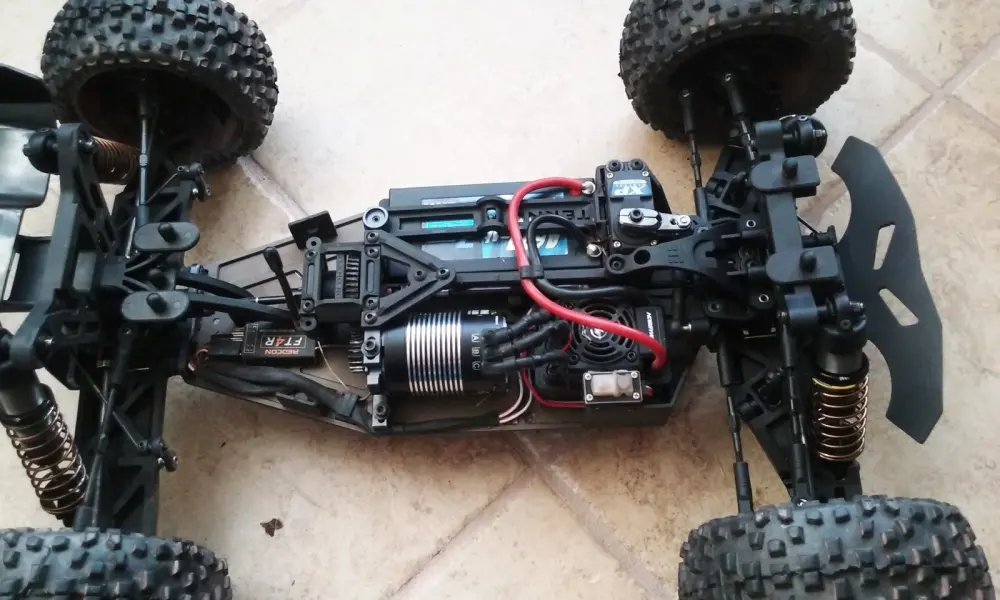

I posted this picture on your other thread. I warned you... it's not pretty:

After four years, Gorilla 15 lb. double sided tape (for ESC) & E6000 still holding things to the chassis...



[Dodge81268]

The 140A and 80A versions of the G2 are the same size. I don't have it mounted on an ET410.2, but the 140A G2 is on my SCT410SL chassis with the 3665 G3 motor. You don't want to see my ET410's setup . I tossed and turned trying to figure out a good orientation. Maybe the following will give you an idea what you're after:
View attachment 9574
I zip tied the sensor cable to the center brace.

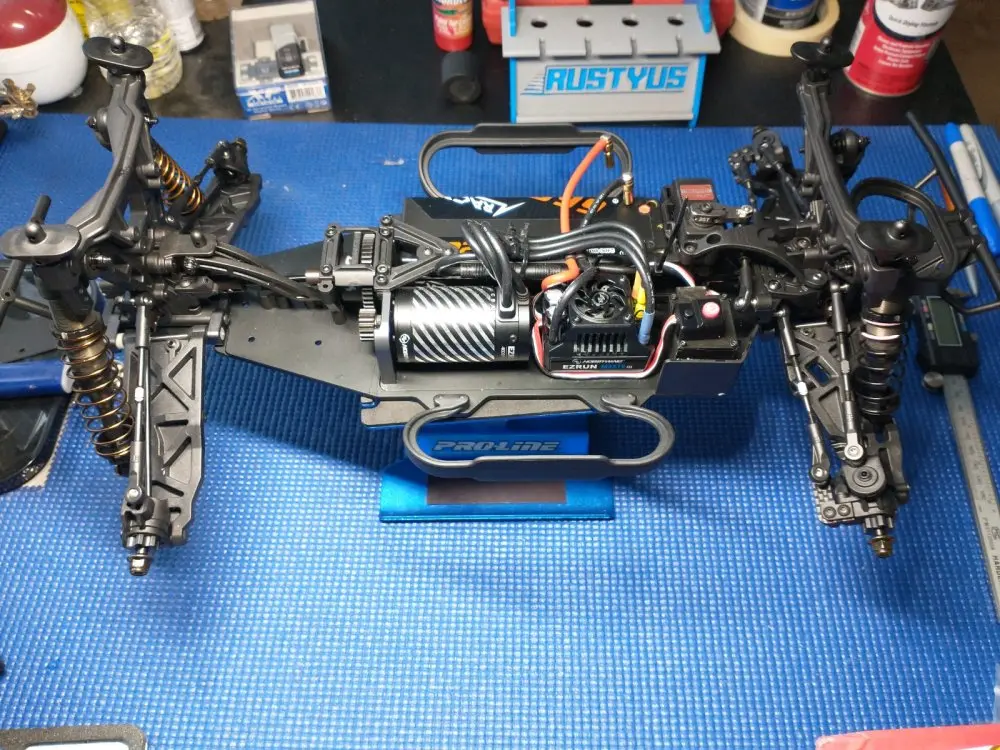

View attachment 9577
View attachment 9575
I'll probably shorten the motor wires at some point. I just wanted to see how things held up during the first month or two. So far, so good.

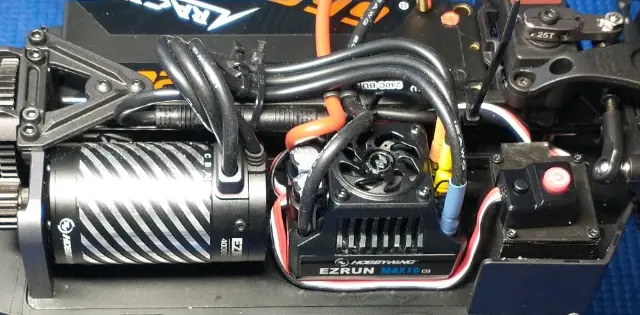

View attachment 9576
I have not seen anyone with a Max10 G2 on a ET410 yet. I'd love to see what you come up with, 'cause I got plans for putting a Max10 80A G2/3652 G3 combo onboard a ET410.2 later on this year.

Where did you get the receiver box or do you have a part number?



[RustyUs]

Where did you get the receiver box or do you have a part number?

The "receiver box" on my SCT410SL was just something I 3D printed.

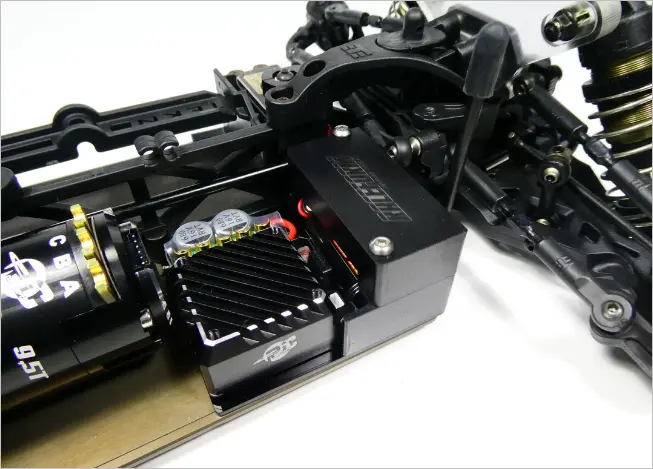

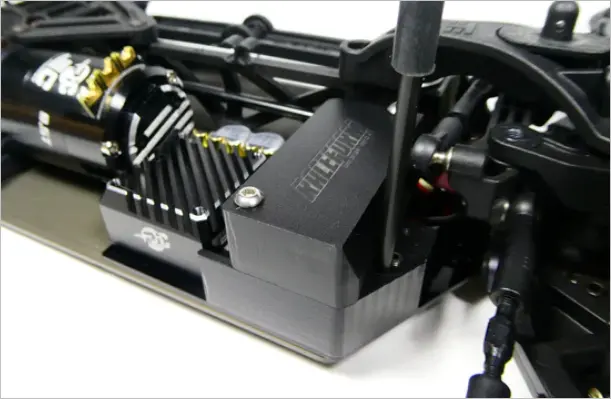

A lot of people will use Raceform's electronics tray for their EB/ET410 rides...
