Build nearly complete. Some final questions.

NicC

Active member
Messages
27
Reaction score
10

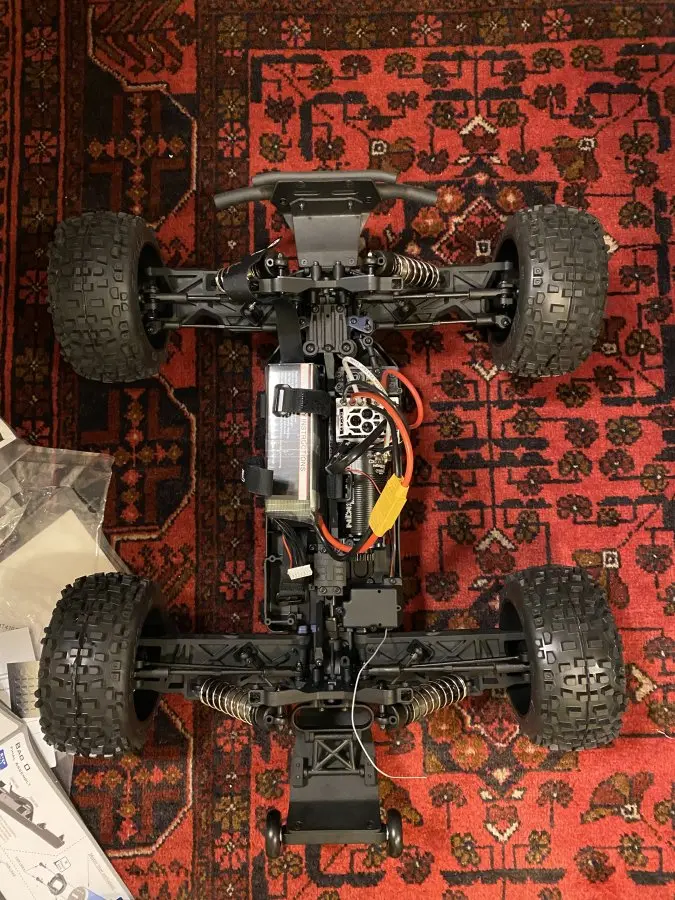

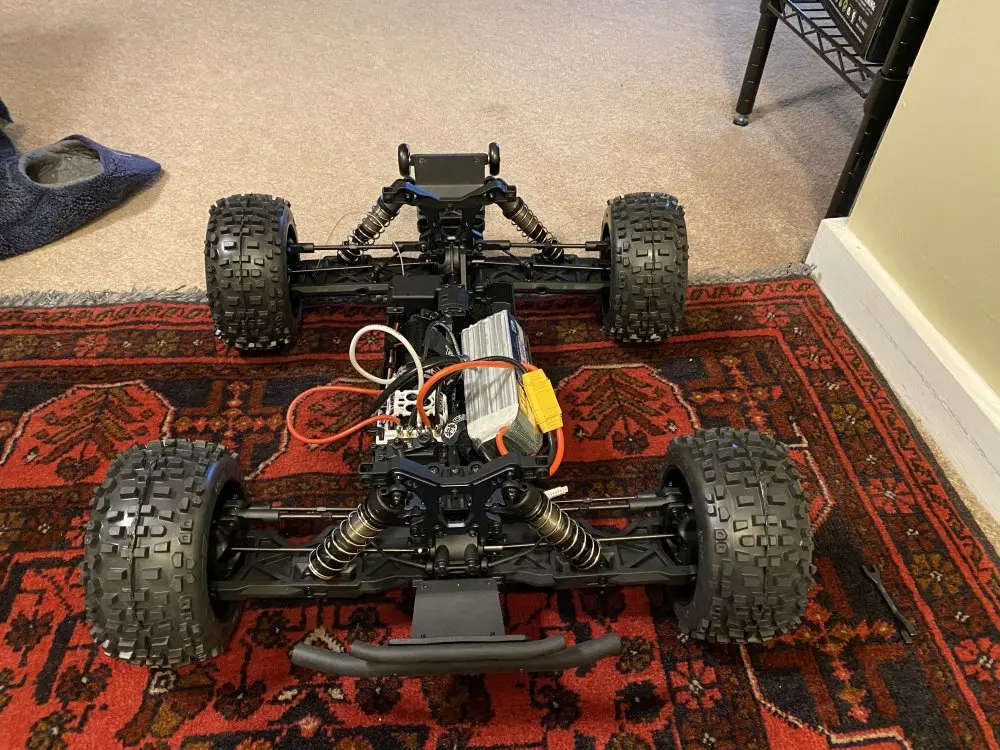

Thanks to the help here I’m nearly done with my first ever build. Photo below and excuse the 💩soldering! @Nicochau I went through with it!

1. Suggestions on ride height and shock adjustments?

2. Any toe / camber suggestions? I still need to adjust mine as you can see it’s out.

3. Anything else??? Can I send it now?


Nicochau

Premium Member
Supporting Member
Messages
414
Reaction score
301
Location
Los Angeles
Tekno RC's
  1. EB48
  2. ET48
  3. MT410
Looking good!

I do a bit of toe out (like 0.5 deg) and -2deg camber all around.

Ride height is set when arms are perfectly horizontal.


NicC

Active member
Messages
27
Reaction score
10
Looking good!

I do a bit of toe out (like 0.5 deg) and -2deg camber all around.

Ride height is set when arms are perfectly horizontal.
Will do!


MAVERICK

Premium Member
Supporting Member
Messages
116
Reaction score
92
Location
Troy Illinois
Tekno RC's
  1. EB48
Thanks to the help here I’m nearly done with my first ever build. Photo below and excuse the 💩soldering! @Nicochau I went through with it!

1. Suggestions on ride height and shock adjustments?

2. Any toe / camber suggestions? I still need to adjust mine as you can see it’s out.

3. Anything else??? Can I send it now? View attachment 5671
Looks good man

in my experience running the battery in that position is not good.

The yoke on the center diff will rub the cables. I always have my cables facing forward. I think it is just safer.

I love TEKNO

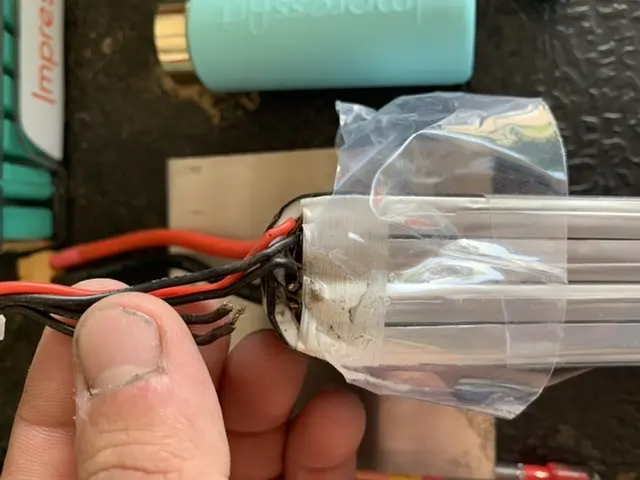

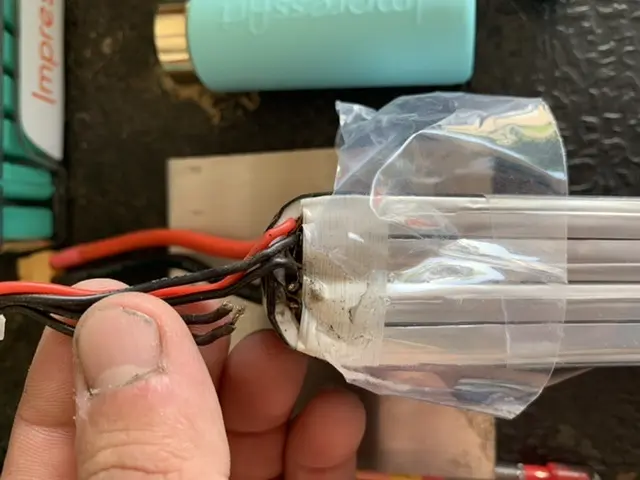

but that is a issue I have were most of my battery’s are very close to the open driveline and yokes i had my balance port get eaten up on the first run


Nicochau

Premium Member
Supporting Member
Messages
414
Reaction score
301
Location
Los Angeles
Tekno RC's
  1. EB48
  2. ET48
  3. MT410
Looks good man

in my experience running the battery in that position is not good.

The yoke on the center diff will rub the cables. I always have my cables facing forward. I think it is just safer.

I love TEKNO

but that is a issue I have were most of my battery’s are very close to the open driveline and yokes i had my balance port get eaten up on the first run
View attachment 5674

I saw your post on FB, did you manage to fix your battery?

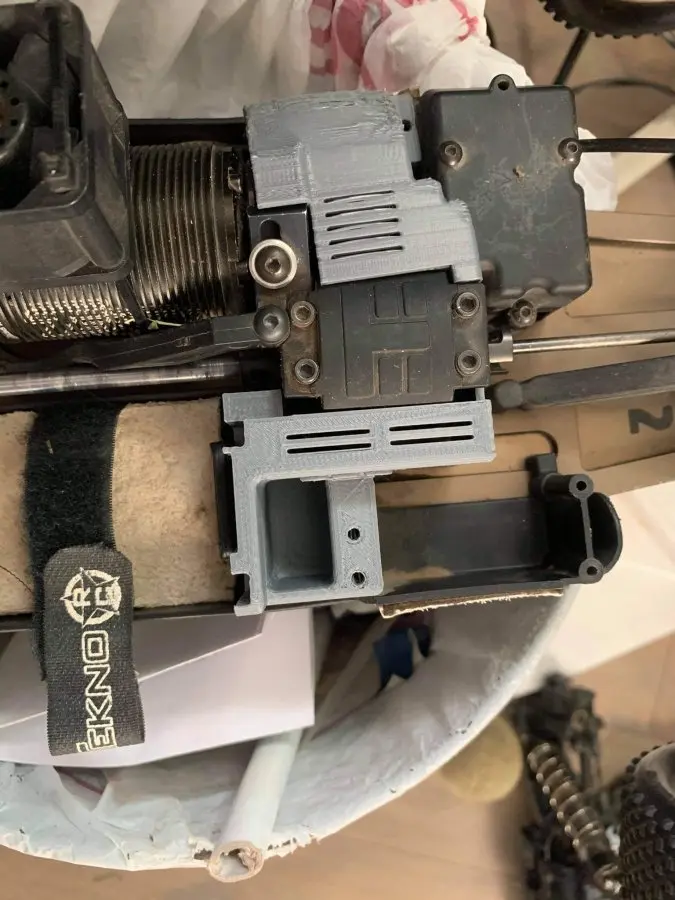

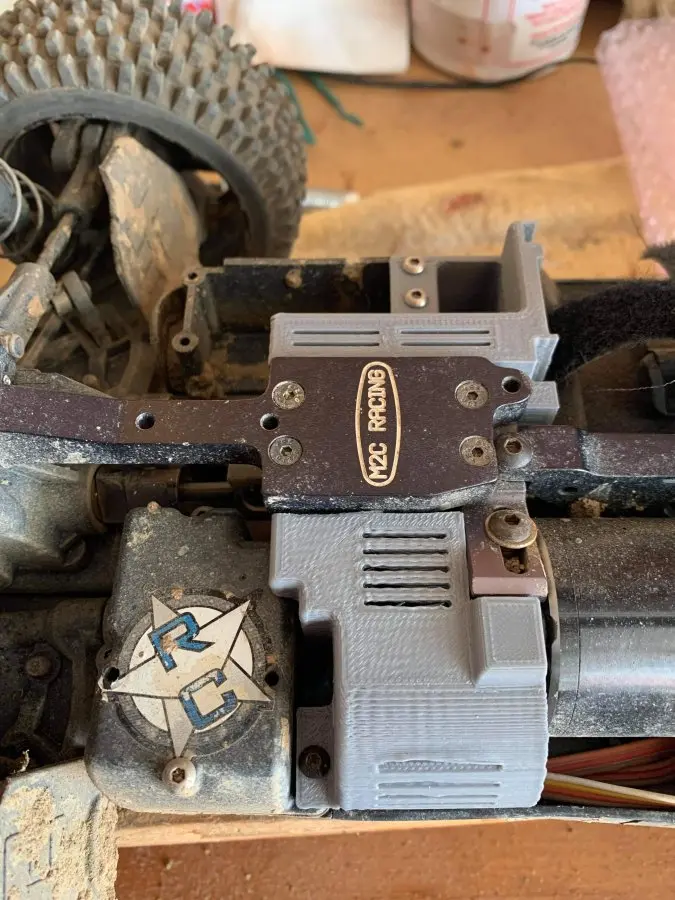

You can also run those parts that people 3D print to help contain the battery. I personally don’t like to pinion cover, but run the battery side as a good way to keep battery connectors out of the driveline.

also, always strap connectors to make sure nothing is shewed up.





NicC

Active member
Messages
27
Reaction score
10
Looking good!

I do a bit of toe out (like 0.5 deg) and -2deg camber all around.

Ride height is set when arms are perfectly horizontal.

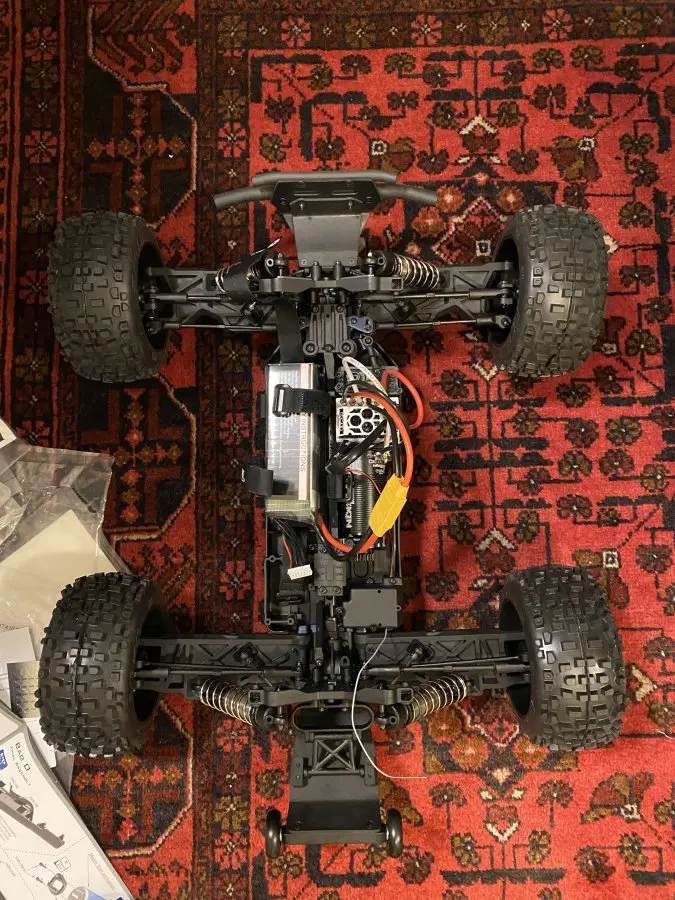

Done!


Attachments

  • 8E38F453-C9C5-4FCE-B0F8-73CFBBC15A33.jpeg
    217.9 KB · Views: 13

NicC

Active member
Messages
27
Reaction score
10
Looks good man

in my experience running the battery in that position is not good.

The yoke on the center diff will rub the cables. I always have my cables facing forward. I think it is just safer.

I love TEKNO

but that is a issue I have were most of my battery’s are very close to the open driveline and yokes i had my balance port get eaten up on the first run
View attachment 5674
Thanks. I’ll do that


MAVERICK

Premium Member
Supporting Member
Messages
116
Reaction score
92
Location
Troy Illinois
Tekno RC's
  1. EB48
I saw your post on FB, did you manage to fix your battery?

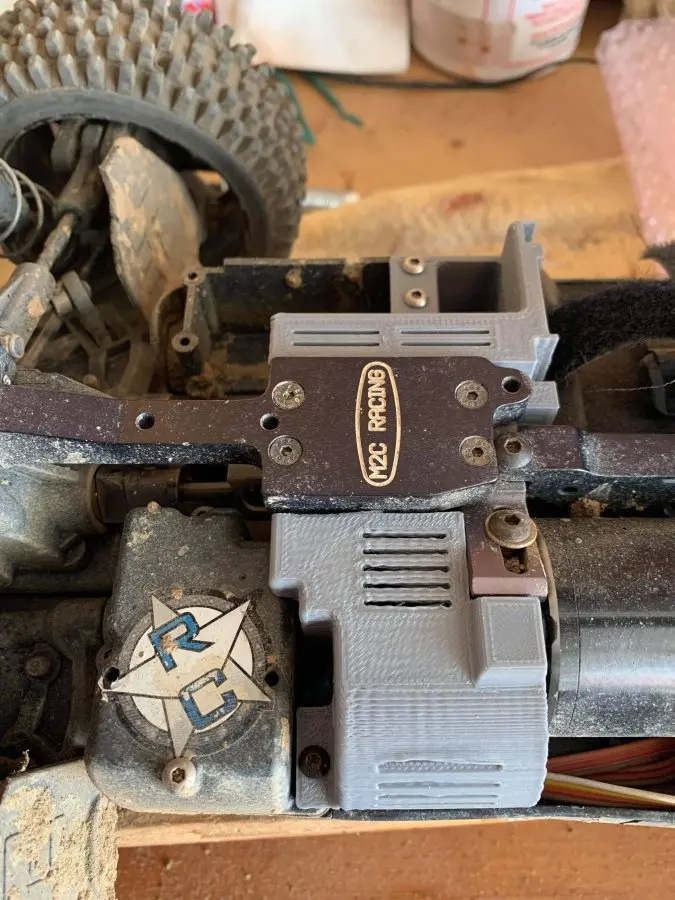

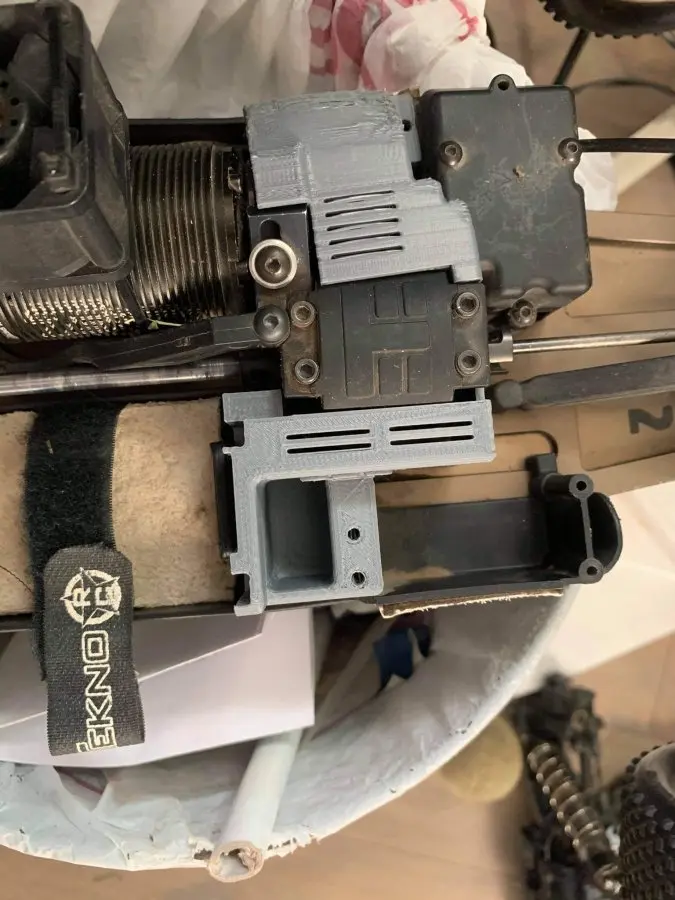

You can also run those parts that people 3D print to help contain the battery. I personally don’t like to pinion cover, but run the battery side as a good way to keep battery connectors out of the driveline.

also, always strap connectors to make sure nothing is shewed up.

View attachment 5675

View attachment 5676
Yes I was able to fix battery 👍

I will look into the battery side cover thanks


freelosophy

Well-known member
Messages
48
Reaction score
7
Hey I got the same results got the battery cables chewed up. I did fix the battery. removed the shrink wrap, soldered new wires and connector adn re-shrunk wrap. Works fine but now it's always oriented as you mentioned and works fine.
