What im doing wrong

Type1

Active member
Messages
30
Reaction score
4
Hi all, I have the et48 2.0 as a basher…. And I’m having problems with the rear gear box. Always snaps where the screws on the rear tower.
I had a few bad landings, but I had the same landings with my kraton exb and nothing happens, looks like there is not a lot of plastic on the gear box and it’s brokes really easy.

Any of you having the same issues?


Attachments

  • CE818E0E-956A-4A8A-AA52-B44BFC8FC39E.jpeg
    216.7 KB · Views: 88

Billl DeLong

Well-known member
TF Excellence Award
Build Thread Contributor
Messages
1,071
Reaction score
888
Location
Austin, TX
Tekno RC's
  1. EB410
  2. EB48
  3. ET48
  4. ET410
  5. MT410
  6. SCT410
Driving Style
Racer
I don't have much experience with the 2.0 but have rarely seen them experience this break at the track in my area.

Do you have the rear chassis brace installed? Is the brace also snapping?

Are you inspecting the chassis brace every run? I wonder if the chassis brace has broken first but not getting replaced before the gear box is damaged?

I used to own the 0.3 version and I had to replace the rear chassis brace periodically.


Type1

Active member
Messages
30
Reaction score
4
I don't have much experience with the 2.0 but have rarely seen them experience this break at the track in my area.

Do you have the rear chassis brace installed? Is the brace also snapping?

Are you inspecting the chassis brace every run? I wonder if the chassis brace has broken first but not getting replaced before the gear box is damaged?

I used to own the 0.3 version and I had to replace the rear chassis brace periodically.
I have a 7075 rear chasis brace, and also the center chasis brace en 7075. And all looks ok. Maybe now is to rigid for hard bashing and that’s why it snaps the gearbox like that. Hope I can find a solution


Billl DeLong

Well-known member
TF Excellence Award
Build Thread Contributor
Messages
1,071
Reaction score
888
Location
Austin, TX
Tekno RC's
  1. EB410
  2. EB48
  3. ET48
  4. ET410
  5. MT410
  6. SCT410
Driving Style
Racer
That's an interesting point, I don't know of anyone at my local track that used any 7075 parts, generally you want a little flex so maybe consider re-installing the original braces from the kit and see if that improves durability? Not gonna make any guarantees, but it's worth trying something different to see if it helps or not.

Good Luck!


nitro

Well-known member
Messages
64
Reaction score
41
Is something in the shock or tire setup preventing proper chassis slap. For bashing you want the chassis hitting the ground good on landing

Messages
829
Reaction score
599
Location
Los Angeles
Tekno RC's
  1. EB48
  2. ET48
  3. MT410
Driving Style
Basher

Billl DeLong

Well-known member
TF Excellence Award
Build Thread Contributor
Messages
1,071
Reaction score
888
Location
Austin, TX
Tekno RC's
  1. EB410
  2. EB48
  3. ET48
  4. ET410
  5. MT410
  6. SCT410
Driving Style
Racer
Is something in the shock or tire setup preventing proper chassis slap. For bashing you want the chassis hitting the ground good on landing

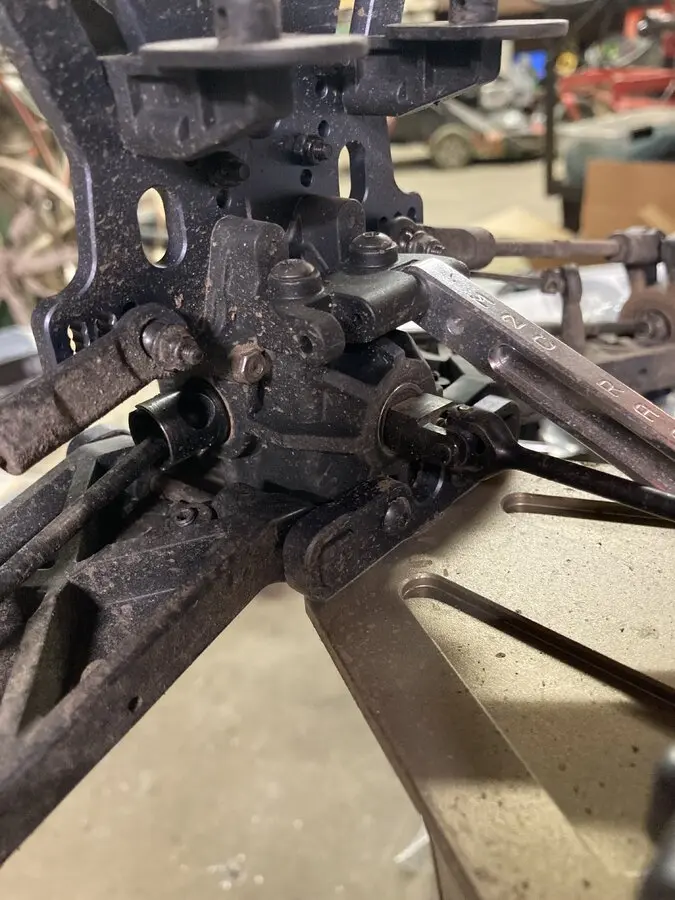

Nice call, here's an example of what I did to fix this issue on a different car:


That said if you're running non standard wheels, then you may need to reduce the shock length somehow, possibly shorter shock shafts and springs maybe.


Type1

Active member
Messages
30
Reaction score
4
You might be right, but when I had the stock braces the center dogbone broke in half. Today I noticed also a front break gearbox. I think I’m going to leave the tekno for racing and not bashing. Broke to many parts


Attachments

  • 6210B49D-92F5-4946-908E-8BACE1EF06C1.jpeg
    127.8 KB · Views: 63

Lynny

Well-known member
Messages
99
Reaction score
121
Location
SE PA
Tekno RC's
  1. EB48
  2. ET48
Driving Style
Basher
Looks to me like you’re homemade tower to tower brace is causing you’re problems. I would remove it and keep the allracing center and rear brace. Also on the rear put 3mm nuts on the bottom two shock tower mounting bolts.
