It's the easy things that drive me crazy

freelosophy

Well-known member
Messages
140
Reaction score
47
why is the castle creations mamba monster x coming loose from my mt410. Ok so I jumped really high, so what nothing broke just the esc came unglued. what's the better way to attach it??? man you think some screw holes would be a good idea? everythink else is bolted down but the esc is glued? wtf castle? create a better mounting scheme. anybody else come accross this? trying to hold it down with tie wraps, it looks like crap.


Nicochau

Well-known member
Messages
611
Reaction score
431
Location
Los Angeles
Tekno RC's
  1. EB48
  2. ET48
  3. MT410
Driving Style
Basher
why is the castle creations mamba monster x coming loose from my mt410. Ok so I jumped really high, so what nothing broke just the esc came unglued. what's the better way to attach it??? man you think some screw holes would be a good idea? everythink else is bolted down but the esc is glued? wtf castle? create a better mounting scheme. anybody else come accross this? trying to hold it down with tie wraps, it looks like crap.
Yes, I zip-tie my ESCs too. Doesn’t look great but makes me feel a lot better about the double sided tape I use.


Klappars

Premium Member
Supporting Member
Build Thread Contributor
Messages
112
Reaction score
81
Driving Style
Basher
why is the castle creations mamba monster x coming loose from my mt410. Ok so I jumped really high, so what nothing broke just the esc came unglued. what's the better way to attach it??? man you think some screw holes would be a good idea? everythink else is bolted down but the esc is glued? wtf castle? create a better mounting scheme. anybody else come accross this? trying to hold it down with tie wraps, it looks like crap.

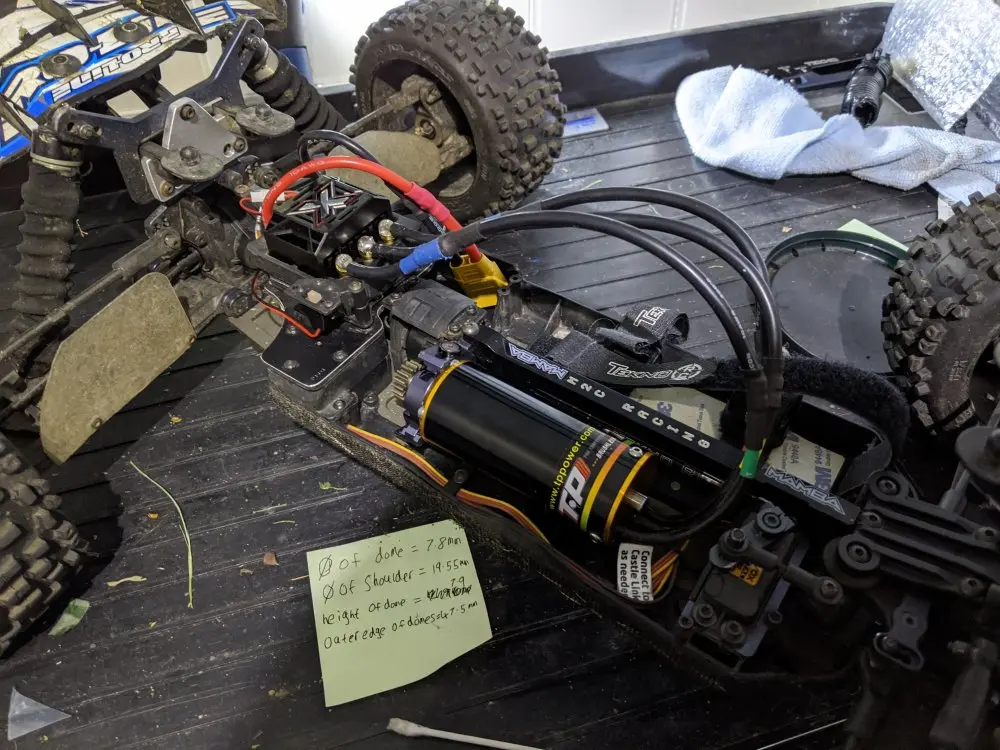

I use the RPM cage to mount my Mamba monster x


Attachments

  • 5C4DB7F6-9E98-452C-A65D-171B29450A15.jpeg
    181.5 KB · Views: 91

MAVERICK

Premium Member
Supporting Member
Messages
223
Reaction score
173
Location
Troy Illinois
Tekno RC's
  1. EB48
Just like Nicochau has suggested is how I do it double sided tape and a zip-tie

I will cut out 2 notches into the ESC mounting plate the width of the zip-tie to keep it in place

I do this on all of my Teknos due to the RPM ESC mount will not fit


Overkill

Well-known member
Messages
303
Reaction score
429
Location
Birmingham, AL
Tekno RC's
  1. EB48
  2. ET48
Driving Style
Basher
Use 3M VHB 5952 tape, remove any sticker from the bottom of the ESC, clean both ESC surface and ESC plate with alcohol. The tape isn't sold in stores, only online (ebay, amazon, etc). It's much stronger than the tape they sell in stores and I've never had to use zip ties.


Nadboo

Member
Messages
23
Reaction score
24
I had the same issue at first, the double sided tape wouldn’t stick to the shiny sticker under the ESC. I scuffed up the bottom of the ESC and where it is mounted with some sandpaper. Make sure you clean both pieces with alcohol. It’s been almost 2 years and no issues with it coming off.


freelosophy

Well-known member
Messages
140
Reaction score
47
I don't see how the rpm esc cage would fit my mt410 with stock chassis and mitche's m2c chassis brace. there;s hardly room for a tie wrap. I guess I've accepted a small black tie wrap around the esc and I'll use 3m double sided tape. hopefully it will hold for a few months. thanks for the feedback. still think castle needs to put one hole in the middle of the esc for mounting.


Supradude26

Well-known member
Messages
157
Reaction score
124
Ive secured every esc with good quality double sided tape on probably the last 40 rigs ive built, and as long as both mounting surfaces are cleaned properly and you use the right tape, the ESC should never come off no matter how hard you crash. More than once Ive crashed so hard that Ive broken screws that held ESC mounting plates to the chassis, but the ESC was still stuck to the plate. In fact, many times Ive struggled to remove the esc during maintenance tear downs because they were stuck so good lol.


swamp2

Member
Messages
16
Reaction score
3
I use the RPM cage to mount my Mamba monster
Cool, looks custom. Is there a custom aluminum cover plate above the receiver box? Both mounting holes for the ESC cage in the cover. More pics, perhaps? Any idea if this high stacking approach is needed with a long can motor AND the m2c chassis?


Klappars

Premium Member
Supporting Member
Build Thread Contributor
Messages
112
Reaction score
81
Driving Style
Basher
Cool, looks custom. Is there a custom aluminum cover plate above the receiver box? Both mounting holes for the ESC cage in the cover. More pics, perhaps? Any idea if this high stacking approach is needed with a long can motor AND the m2c chassis?
Below the RPM cage is a custom made aluminium plate. The RPM cage has two holes which are used to put bolts through to underneath the plate, then m3 nuts to secure it.
The whole plate threads into the receiver box lid and throttle/brake servo mount.

I believe that with the m2c wide chassis this adaptation would not be required, even with long can motors.
